Helical antenna simulation setup

Helical antennas are a simple example of wire antennas that are often used in high-frequency mobile communications.

In this guide we will take a look at how to build a complete helical antenna simulation from scratch in CENOS Radio Frequency app, using its built-in geometry editor, FreeCAD.

Case setup​

Before we can actually start building our simulation, we need to first prepare our case – choose the way we will build our geometry, and save the case.

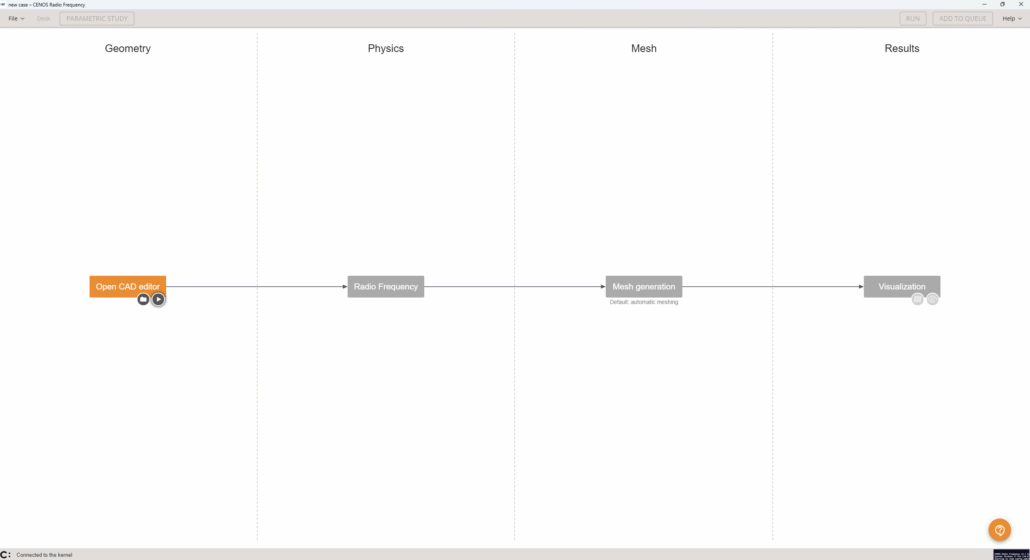

Choose geometry approach​

You have three options from which to choose – Templates, Import CAD (if you have your own CAD file ready) and CAD Editor.

For this example we will choose CAD Editor and build our helical geometry ourselves.

Save the case​

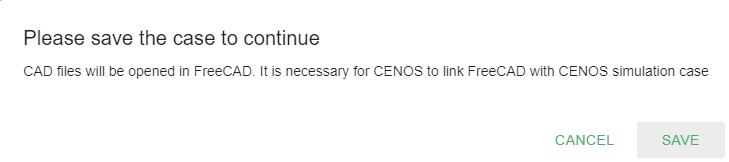

At this point you need to save the case, otherwise if you try to open FreeCAD, CENOS will not let you move forward.

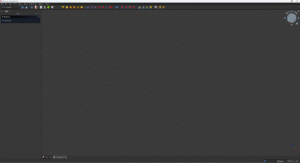

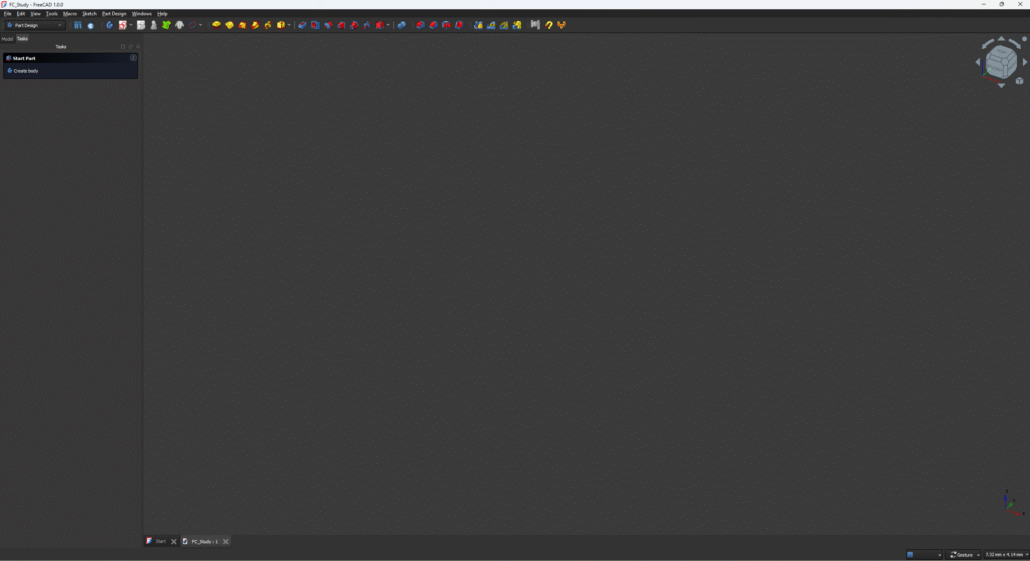

After saving the case, FreeCAD will open.

Geometry creation​

In FreeCAD we have all the possibilities to build our antenna geometry, and we are going to do just that.

In this Geometry creation section we will cover all main points you need to complete to build your own helical antenna geometry manually.

Helix wire sketch​

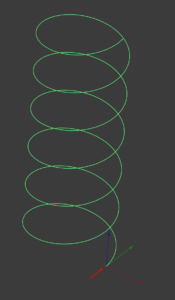

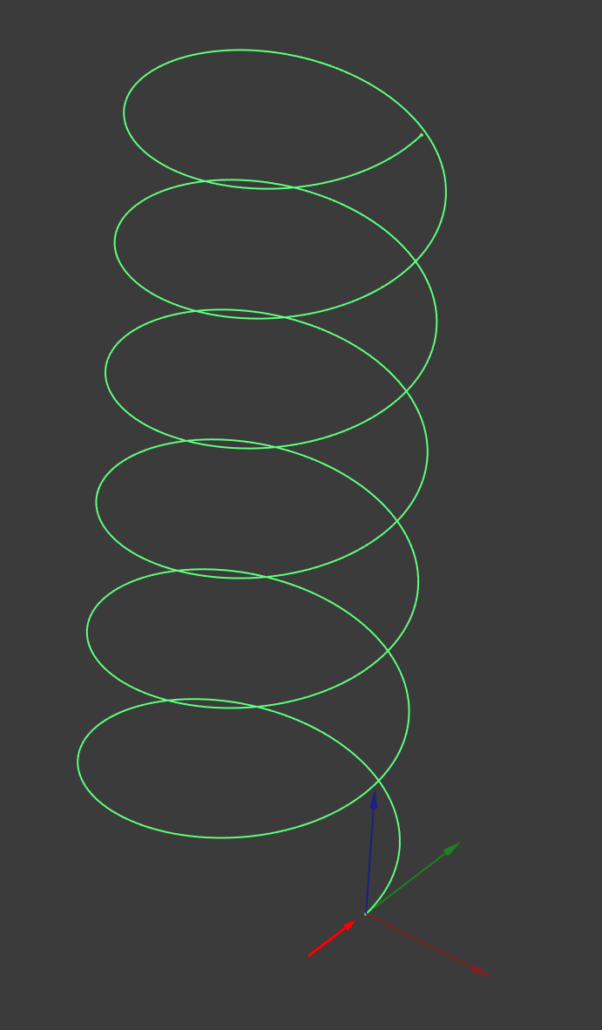

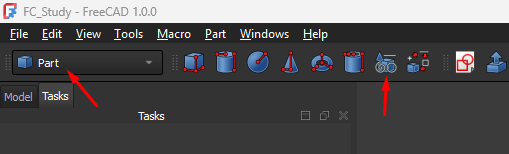

First thing we need to do is to create the sketch of our wire. In Part workbench select the creation of parametrized geometric primitives. In the Combo View select Helix and you will be able to modify both its parameters and its position. You can position one of the helix terminals in the center of the coordinate axes so that the rest of the geometry can be easily placed.

Wire thickness​

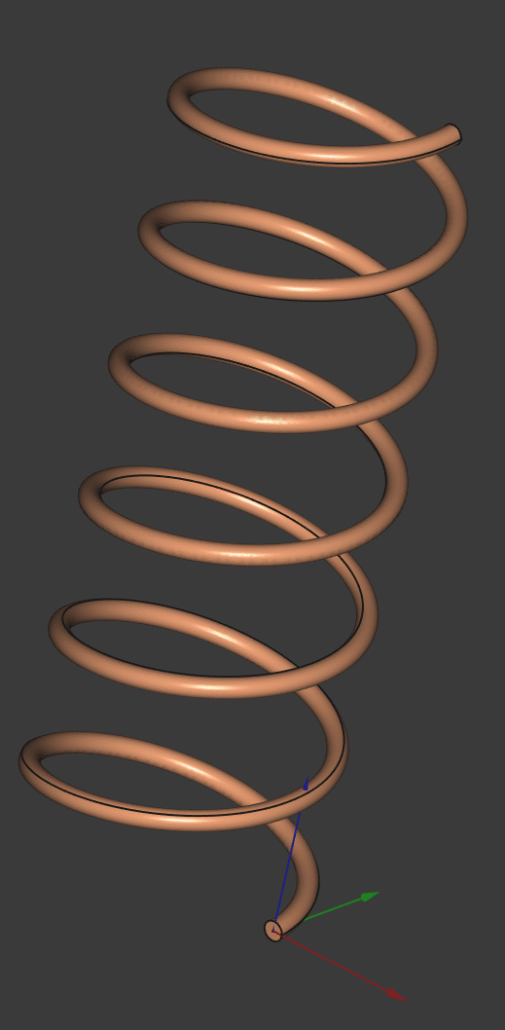

Once the sketch is created, add wire thickness to the sketch to build the actual wire geometry. You can do that by switching to Part design workbench.

Port/feed​

One important thing we need to add is the port. For this case we are going to use a coaxial port, in order to do that, we need to create the inner conductor and the dielectric of the cable.

Inner conductor of coaxial cable​

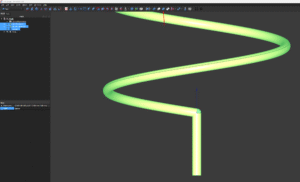

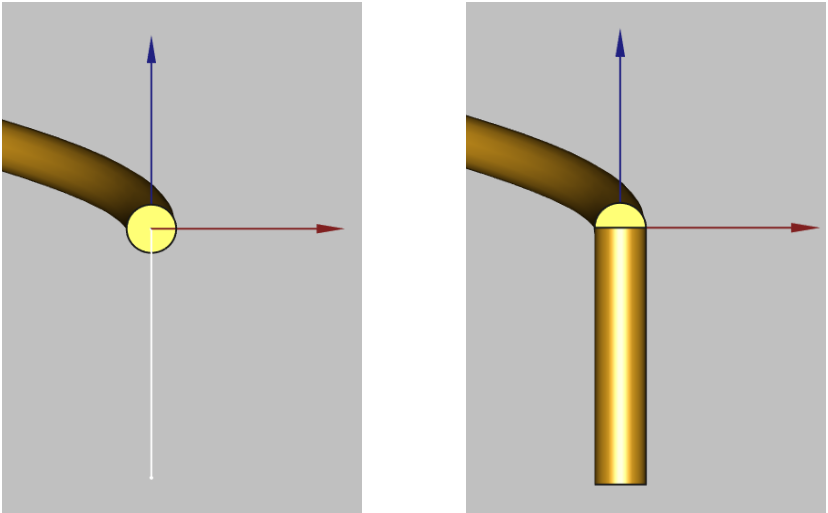

To create the inner conductor we need to draw the sketch of our wire. In Sketch workbench create a sketch and draw the wire outline making sure it makes contact with the helix. After this add a wire thickness as we did before.

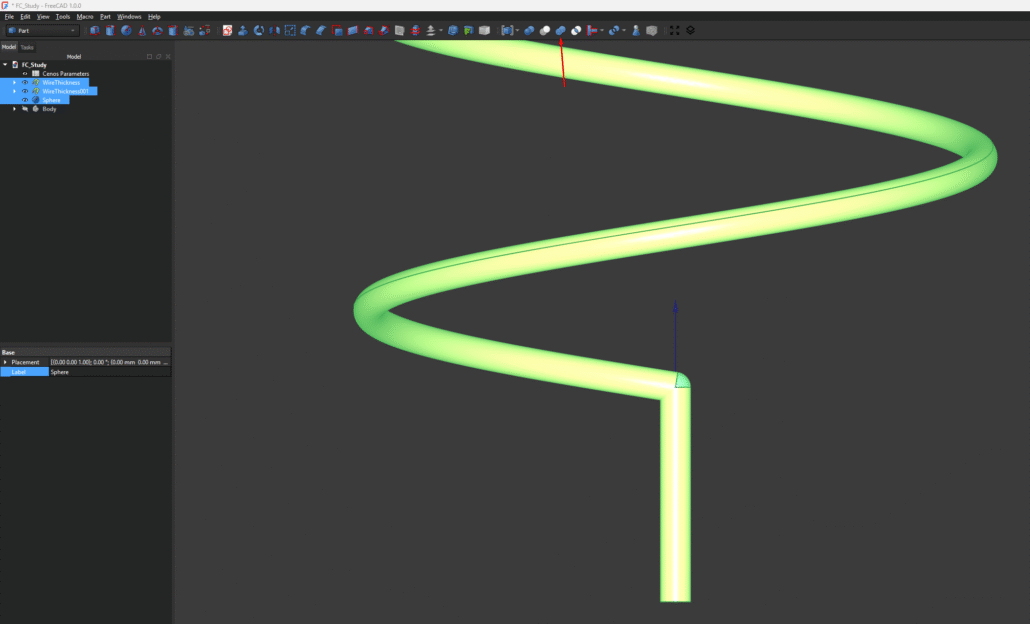

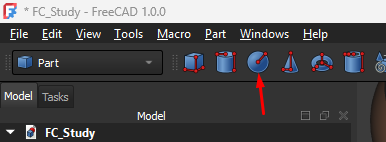

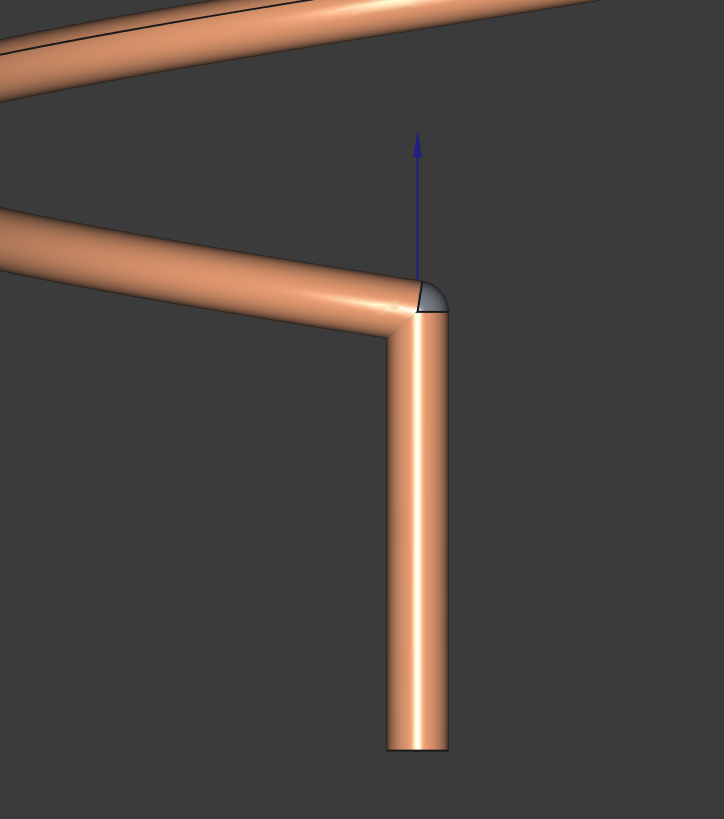

In order to completely unite the helix with the inner conductor of the coaxial cable, we will place a sphere, which can be found in the toolbar of the Part workbench. Do not forget to set the radius of the sphere to the same dimensions as the radius of the antenna wire.

The next step is to join the pieces that we have created to have a single conductive element, to do so, select the objects from the tree view and select the Union tool.

Dielectric of coaxial cable​

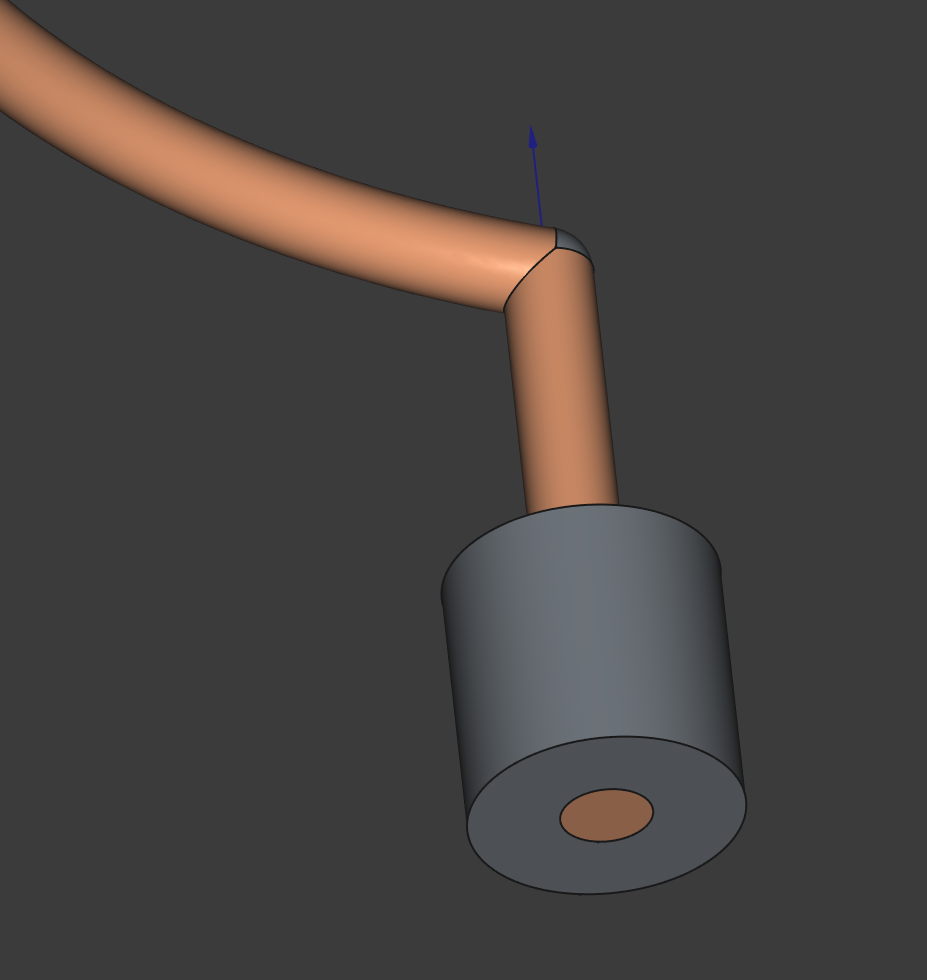

To create the dielectric you have to select the geometric shape tube, which is on the Part workbench. Take into account that the dimension of the inner radius must be equal to the radius of the antenna wire to avoid overlapping.

Ground plane​

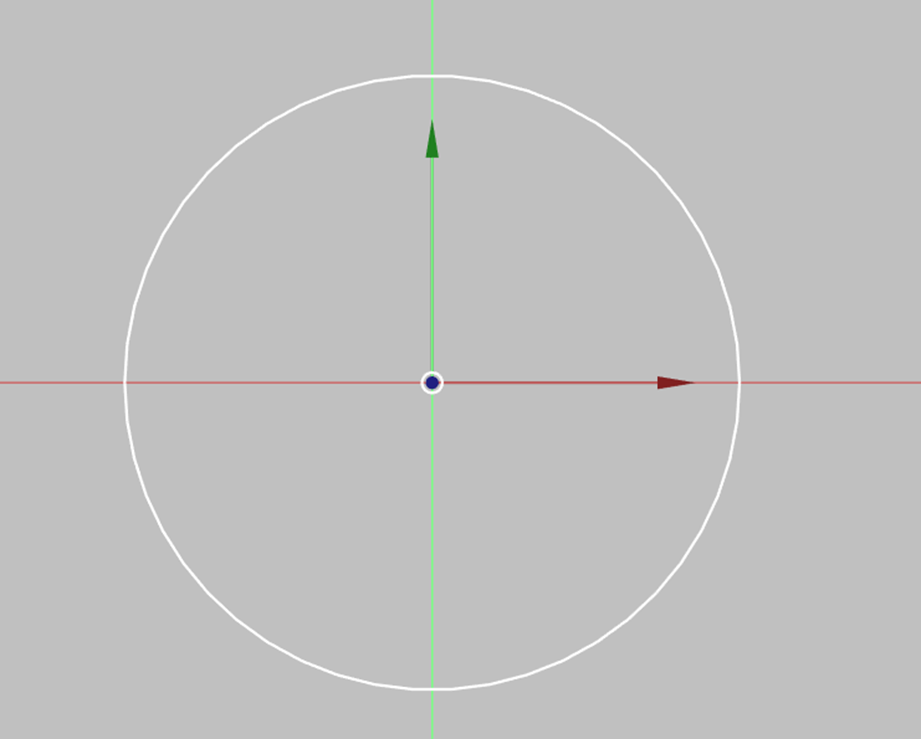

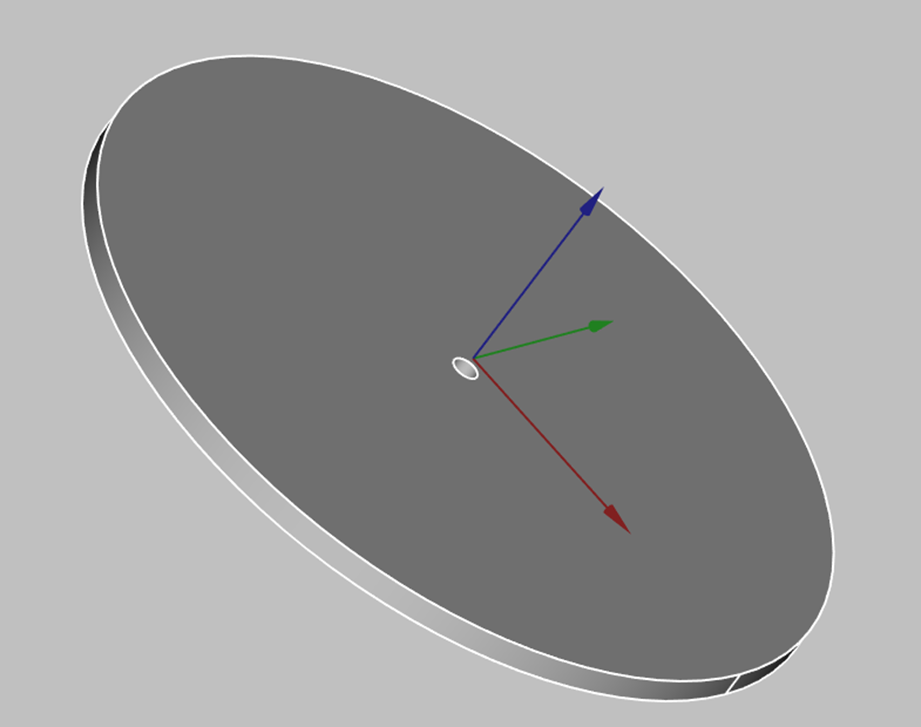

Finally, we need to create the ground plane. An easy way to do this is by creating a 2D sketch and then creating a 3D extrusion. Remember to include the hole where the coaxial cable will be positioned.

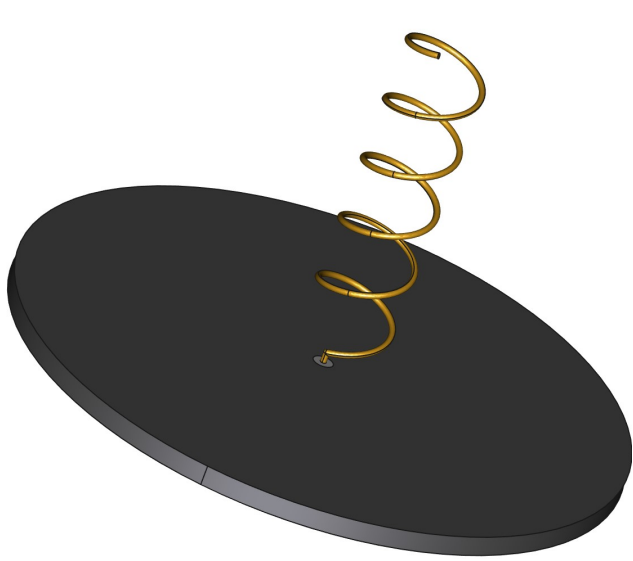

With ground plane creation you have finished your geometry creation!

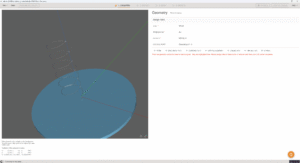

Send geometry to CENOS​

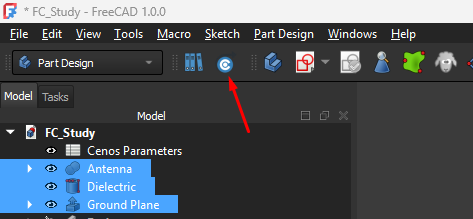

Once you have finished the geometry, you need to send the mesh to CENOS. To do that:

1. Switch to Part design workbench.
2. Select all final objects in the tree view.
3. Click Geometry to CENOS.

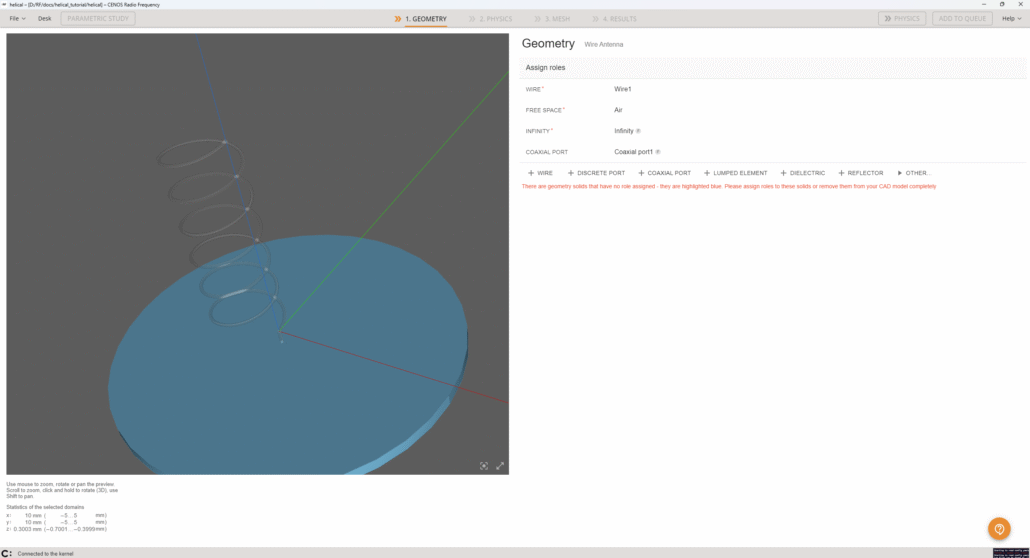

Roles​

Once the geometry is finished and sent to CENOS, you need to define your geometry before defining the physics on it.

Essentially you need to clarify which part of your geometry is the dielectric, which is the port etc., in other words, define roles for parts of your geometry.

Type of antenna​

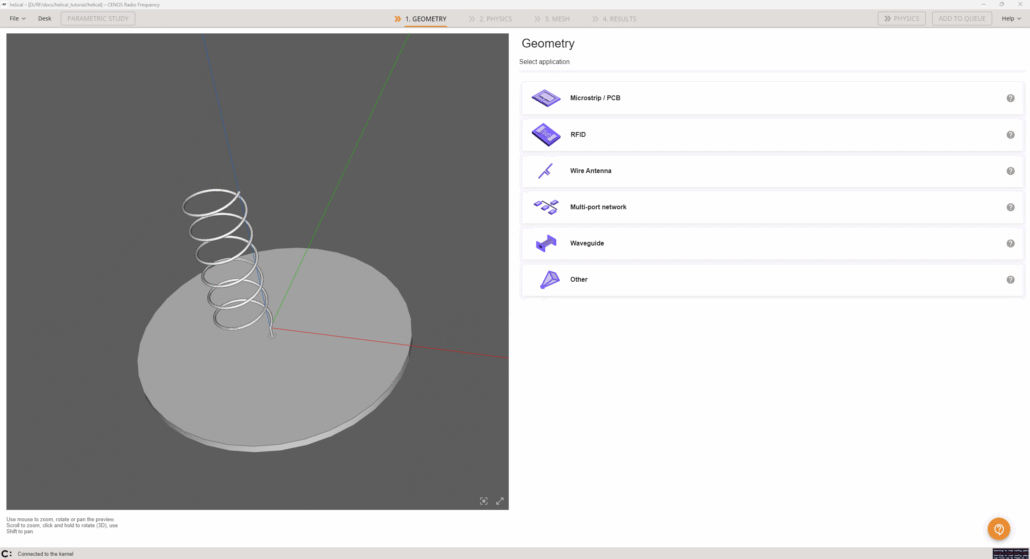

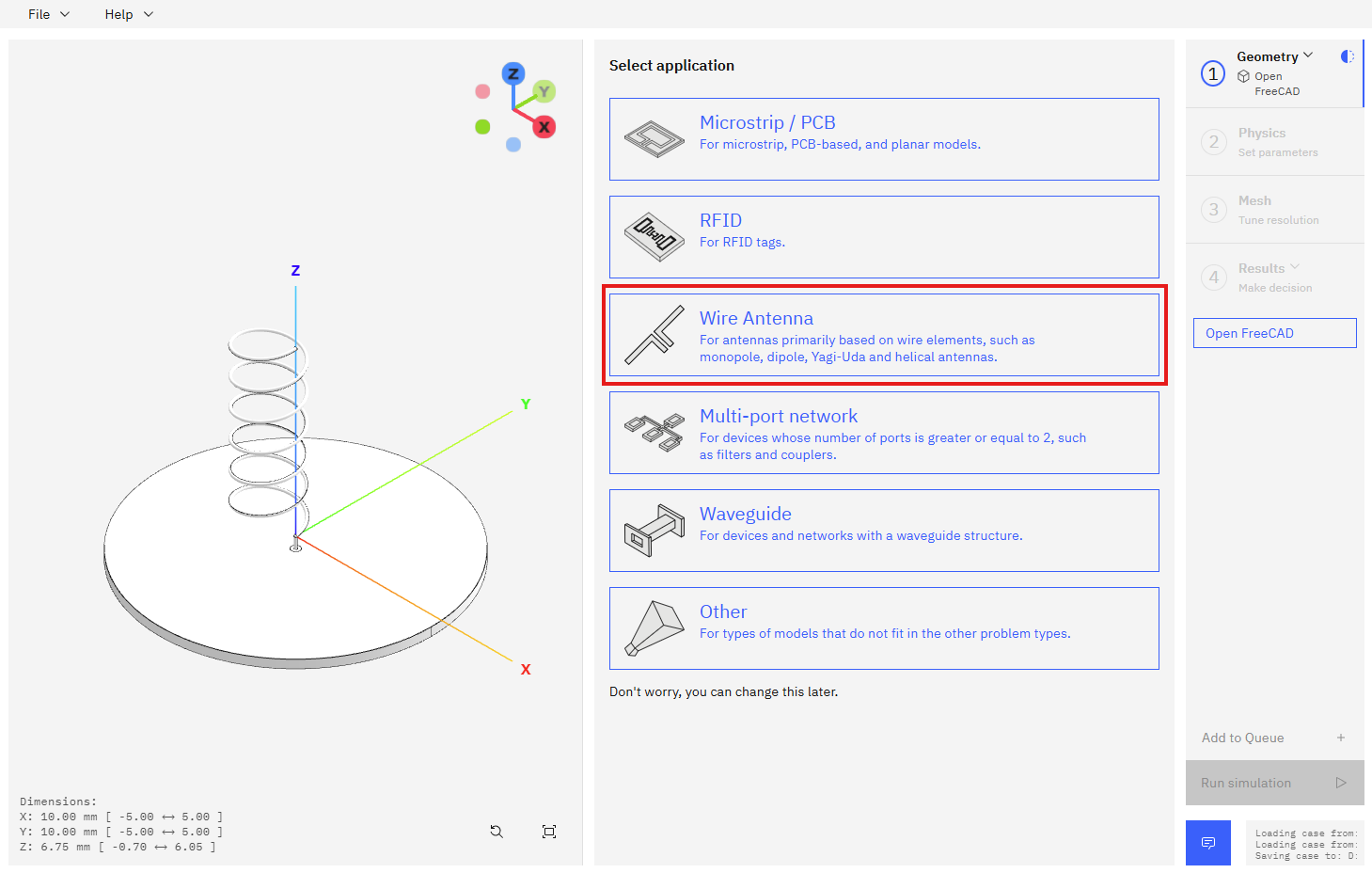

Before you define roles, you need to select what kind of RF model you have – Microstrip, RFID, Wire, Multi-port network, Waveguide or if you consider that your antenna does not fit into any of the preloaded categories, select Custom.

For this example we choose Wire antenna type.

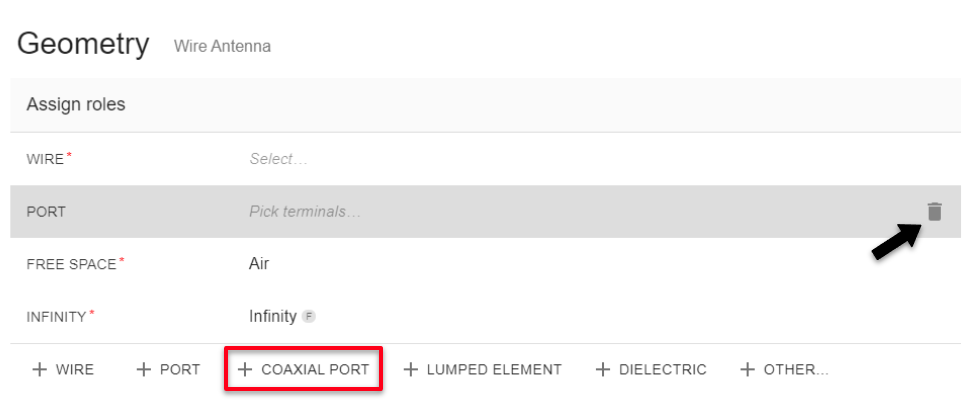

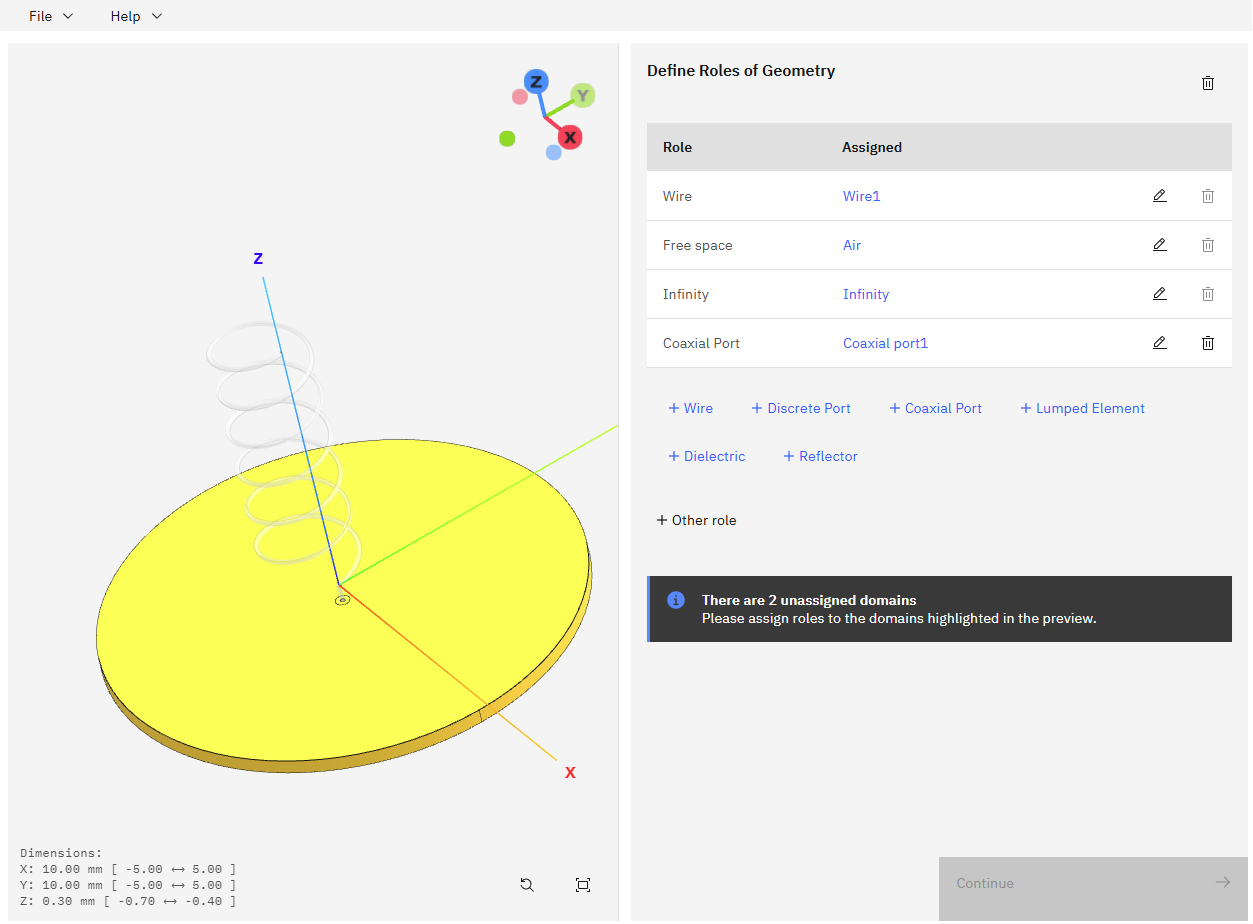

Once you have defined the wire and the port, you must assign a role to the rest of the elements, otherwise you will not be able to advance in the simulation process.

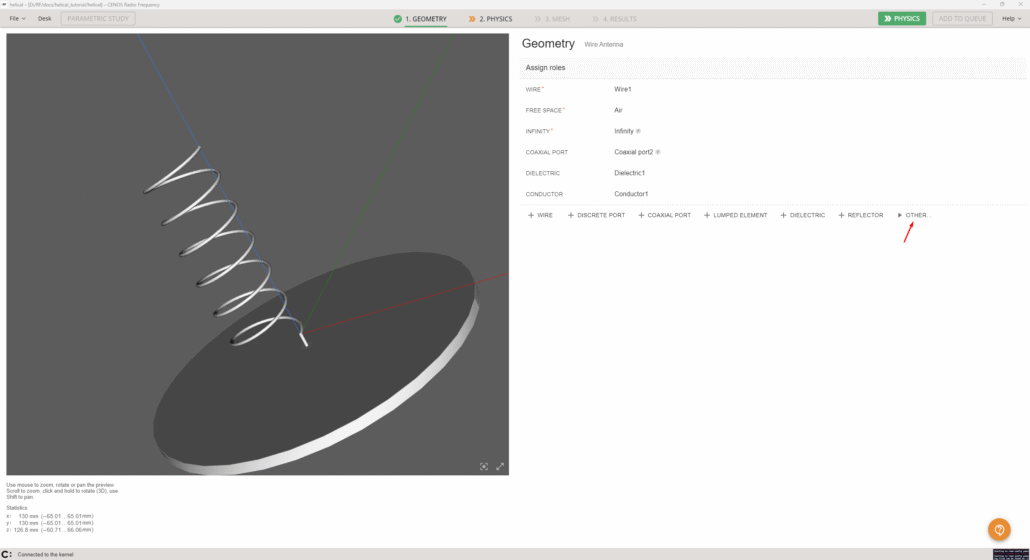

Below the pre-assigned roles you can find other roles, if you don’t find the one you are looking for, simply click on OTHER and you will see more options.

Go to Physics​

When roles are assigned, the PHYSICS button will become active – click it to move to the Physics definition!

Physics​

In physics you need to define the physical parameters of your simulation, which include frequencies, material definitions and boundary conditions.

Make sure to define physics accordingly to your antenna parameters!

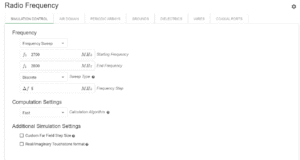

Simulation control​

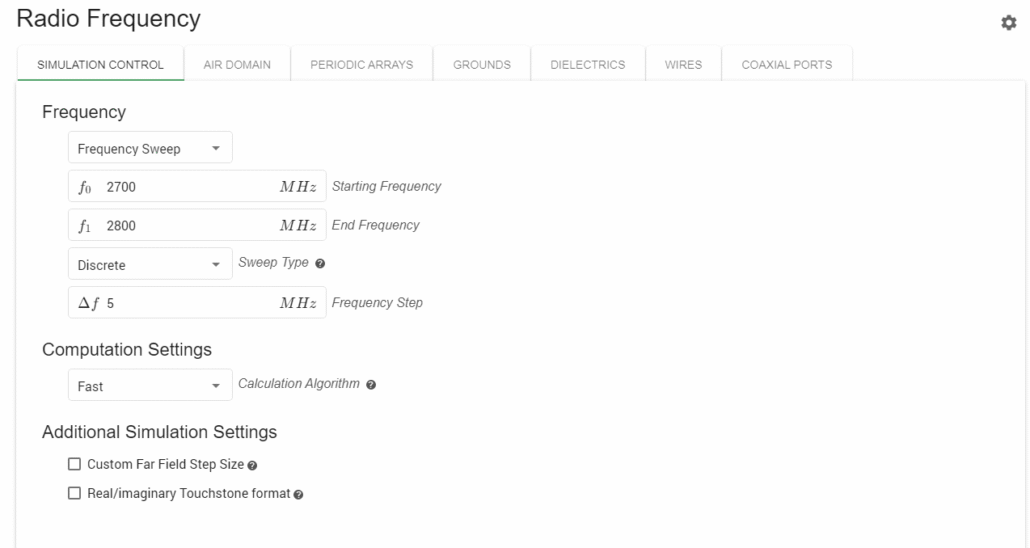

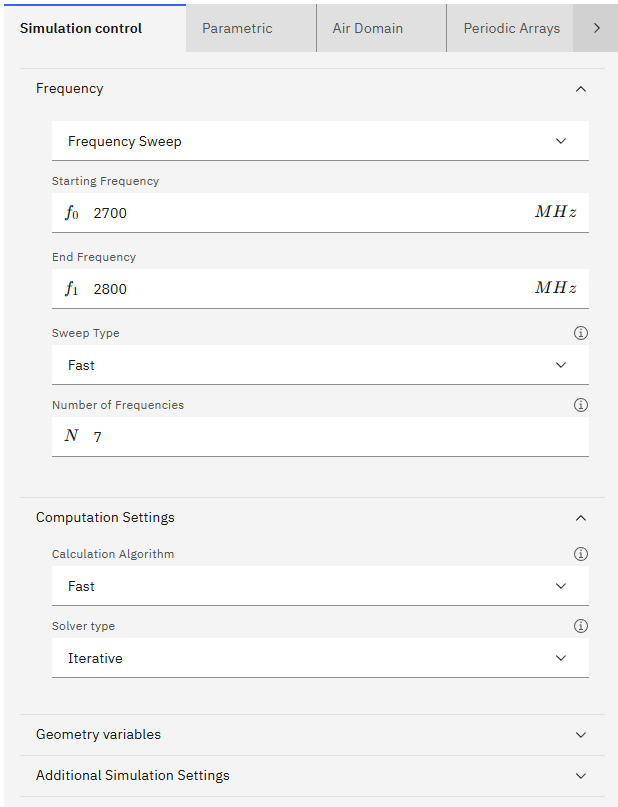

In SIMULATION CONTROL you define either a single frequency or a frequency sweep. You can choose between fast and discrete frequency sweep.

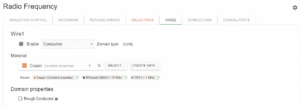

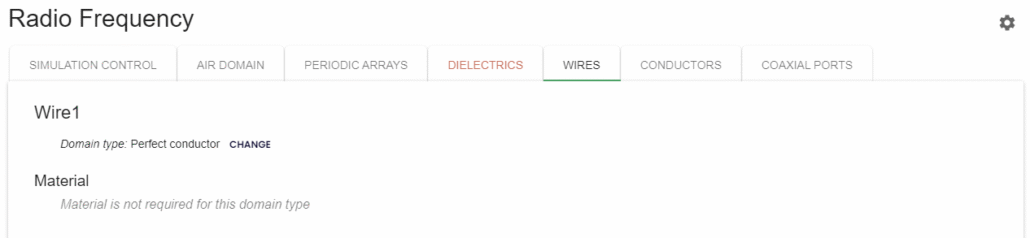

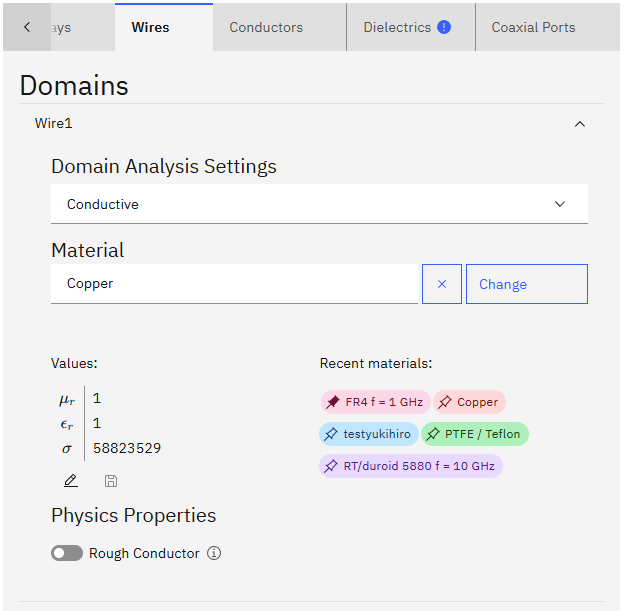

Wire/Ground plane​

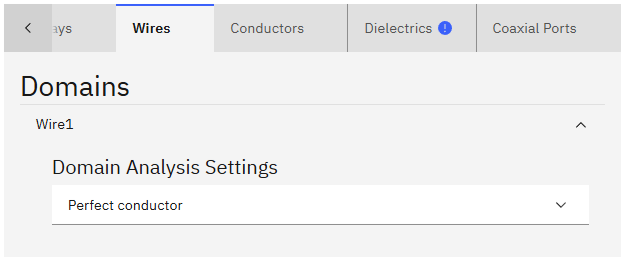

Wire and Ground are already predefined for you, so you don’t need to worry about these parts at all!

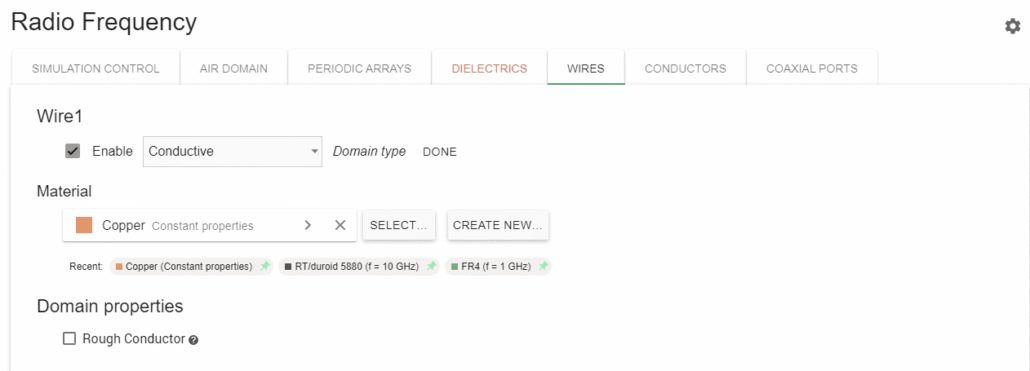

However, if you wish, you can change the material of these roles.

Dielectric​

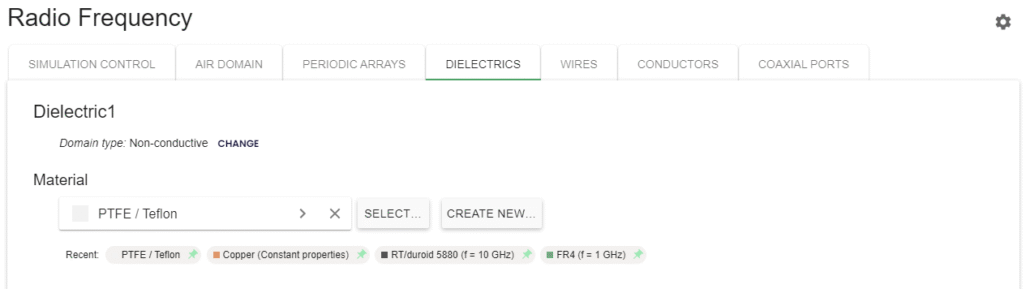

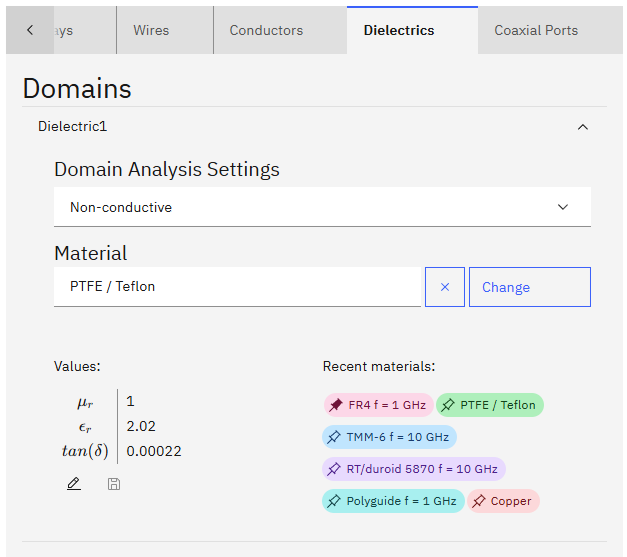

We select PTFE/Teflon which is within the CENOS RF Materials Library.

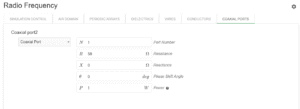

Port​

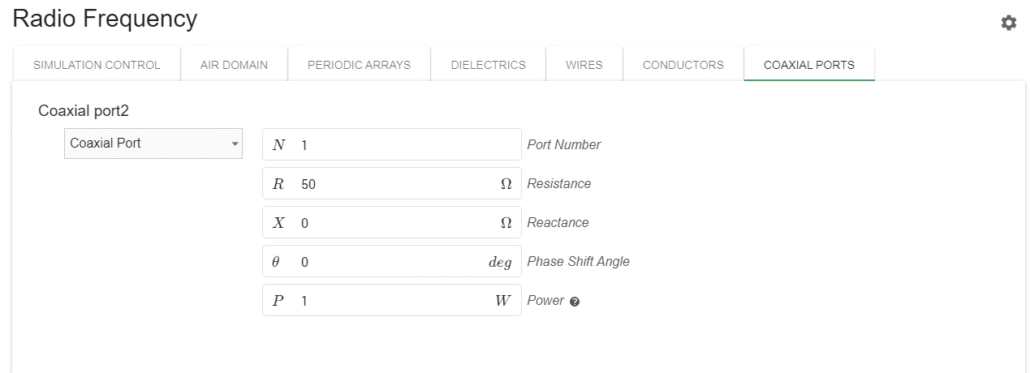

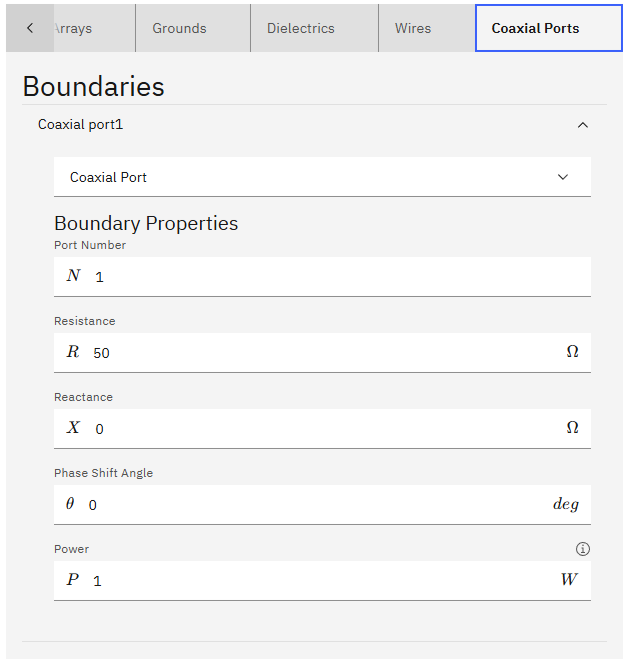

The port has also been predefined, using an impedance of 50Ω.

Once all physical parameters are filled, MESH section will become active and you will be able to continue with the generation of the mesh.



Mesh Generation​

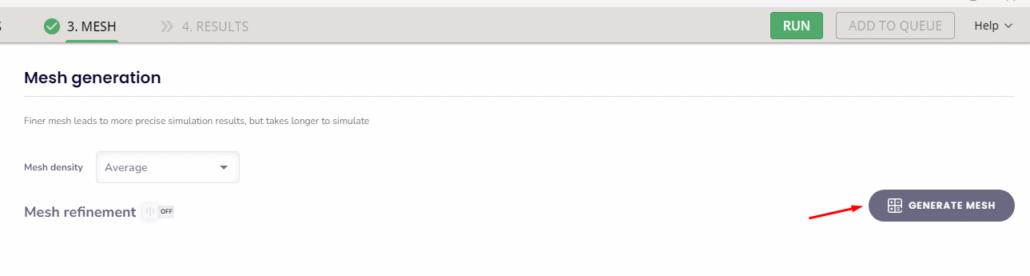

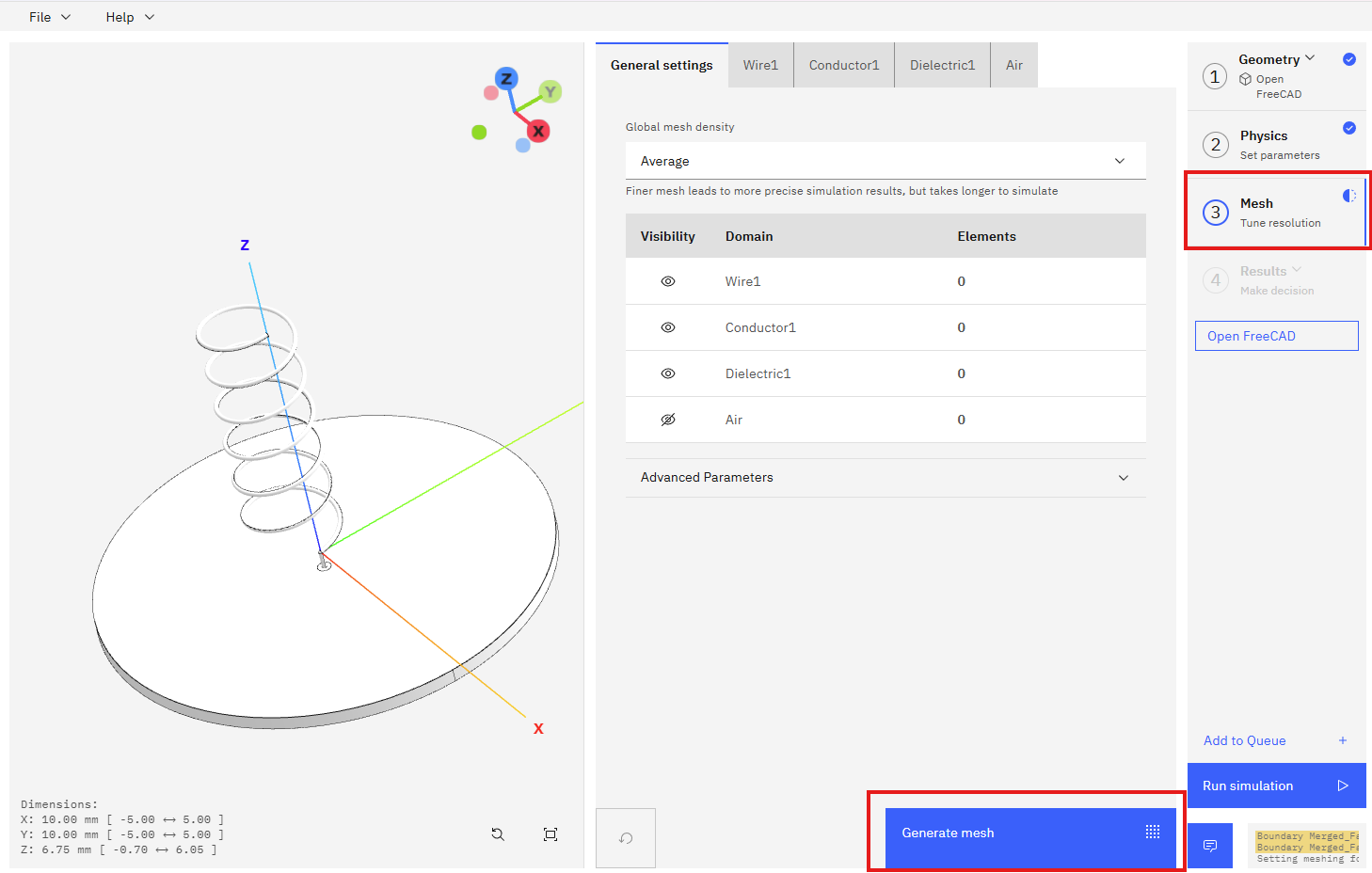

Once all physical parameters are filled, we need to create the mesh. CENOS gives you the possibility to create a mesh automatically, all we need to do is click on GENERATE MESH.

Once the mesh has been generated, RUN button will become active and you will be able to run the simulation!

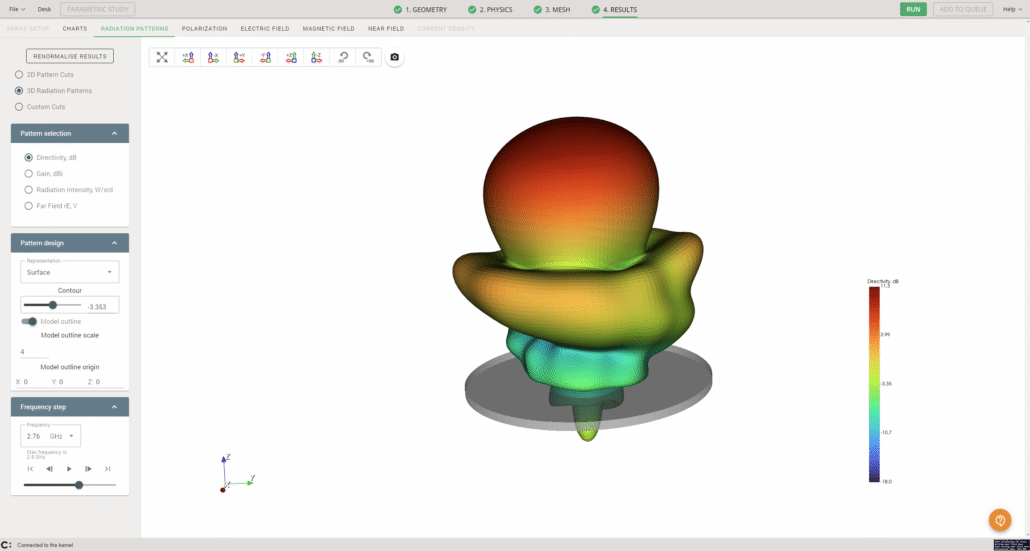

Results​

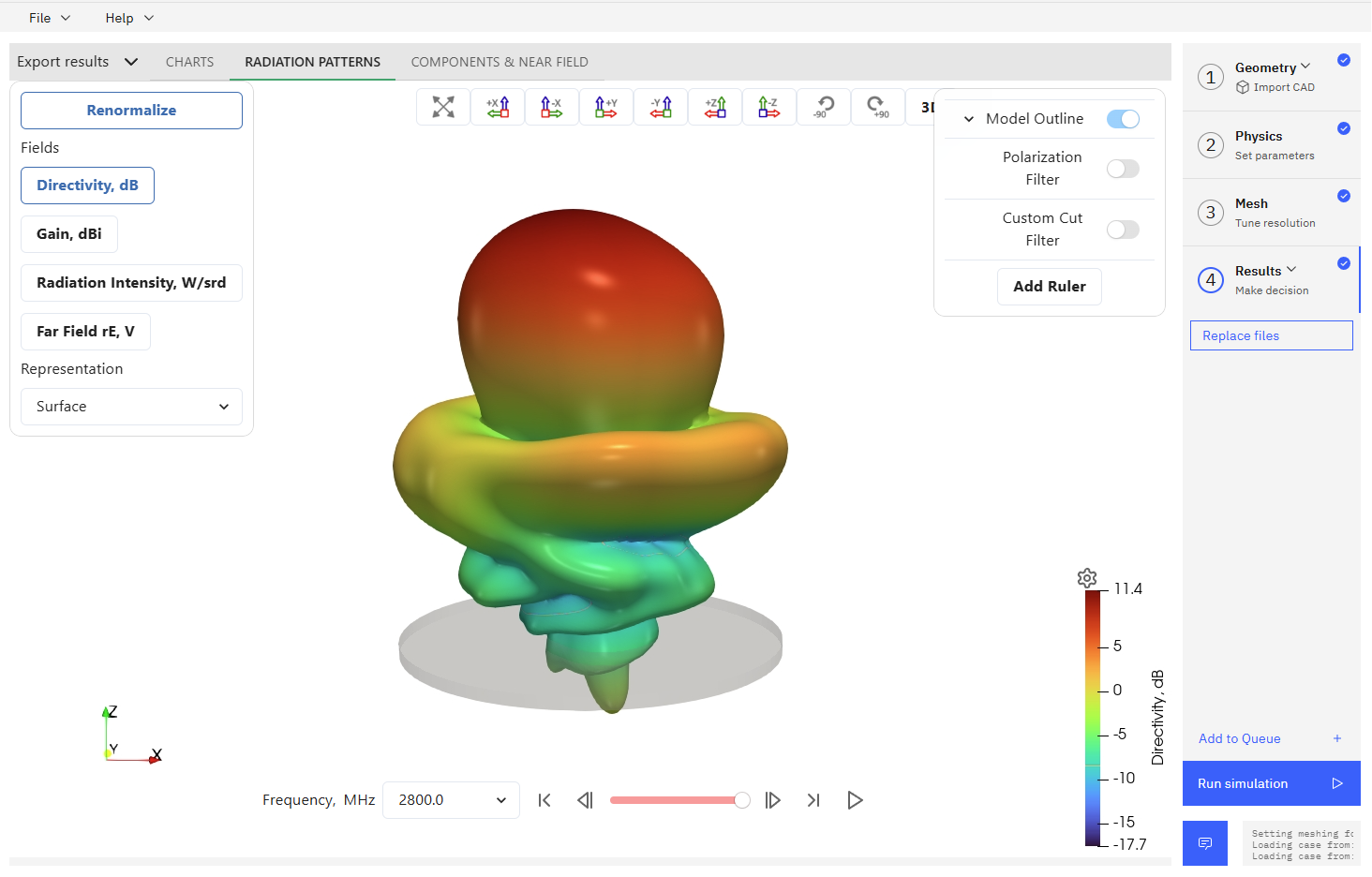

When calculation is done, results will automatically open in Results tab. Congratulations, you have successfully finished a helical antenna simulation!
