Patch antenna simulation setup

PCB/planar/patch antennas are very widely used in modern electronics, and often it is beneficial to make a computer model to predict the behaviour of the patch antenna even before the physical tests have started.

In this guide we will take a look at how to build a complete patch antenna simulation from scratch in CENOS Radio Frequency app, using its built-in geometry editor, FreeCAD.

Case setup​

Before we can actually start building our simulation, we need to first prepare our case – choose the way we will build our geometry, and save the case.

Choose geometry approach​

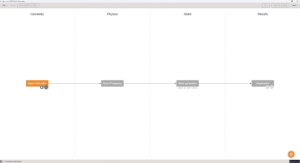

You have three options from which to choose – Templates, Import CAD (if you have your own CAD file ready) and CAD Editor.

Patch antenna can be simulated with any one of these approaches, as there is also a template for it, but for this example we will choose Open CAD Editor and build our patch geometry ourselves.

Save the case​

At this point you need to save the case, otherwise if you try to open FreeCAD, CENOS will not let you move forward.

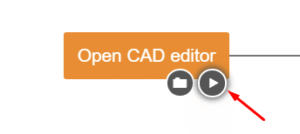

Once the case is saved, click the Play icon to open FreeCAD – CENOS geometry editor.

Geometry creation​

In FreeCAD we have all the possibilities to build our antenna geometry, and we are going to do just that.

In this Geometry creation section we will cover all main points you need to complete to build your own patch antenna geometry manually.

Substrate (dielectric)​

First thing we need to do is to build the substrate. The easiest way to do that is through box creation.

In Part workbench create a box and change the parameters to the values corresponding to your antenna substrate.

Patch / Conductive layers​

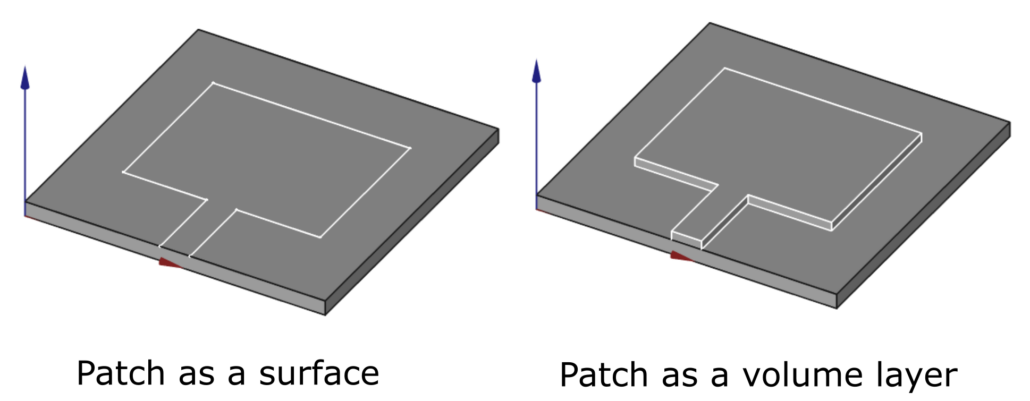

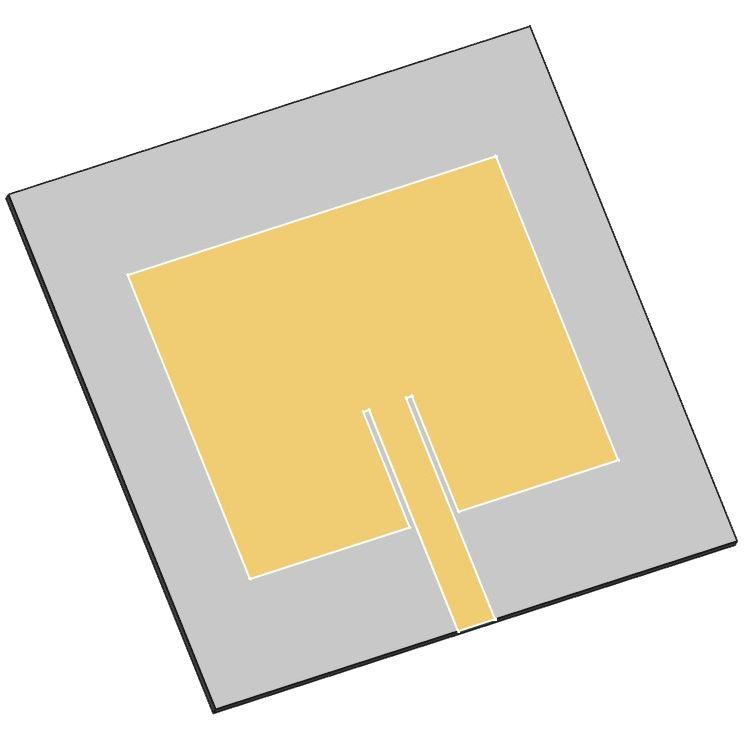

Next we need to create the patch for our antenna. In Sketch workbench patch can be drawn directly on the substrate as a 2D sketch or created as a 3D extrusion. They both work!

PROS/CONS​

For 2D patch:

• Easier to create (Sketch on surface).
• Can avoid meshing problems.

For 3D layer:

• Slightly more difficult to create (Have to create an extrusion).
• More accurate results.

Feed networks​

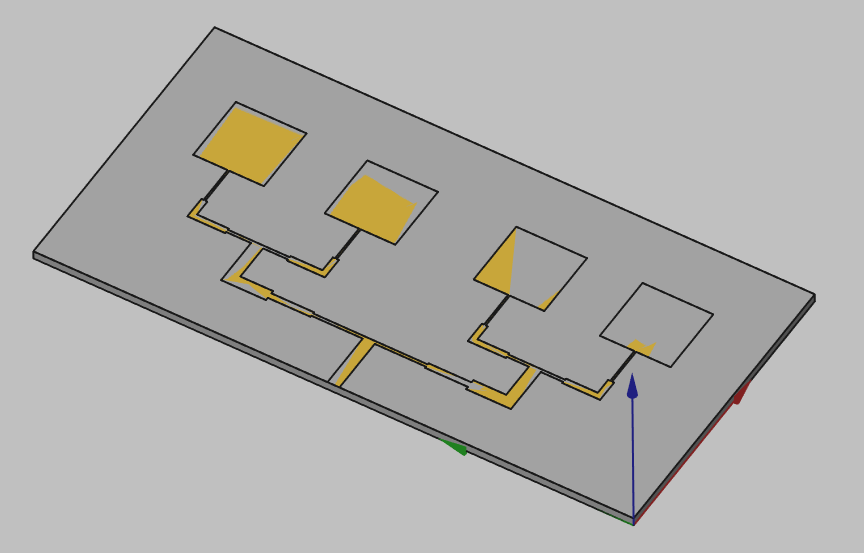

For more complex patch antennas the feed network needs to be drawn separately. To make the feed creation as fast and easy as possible, CENOS has a specific tool designed for this exact purpose.

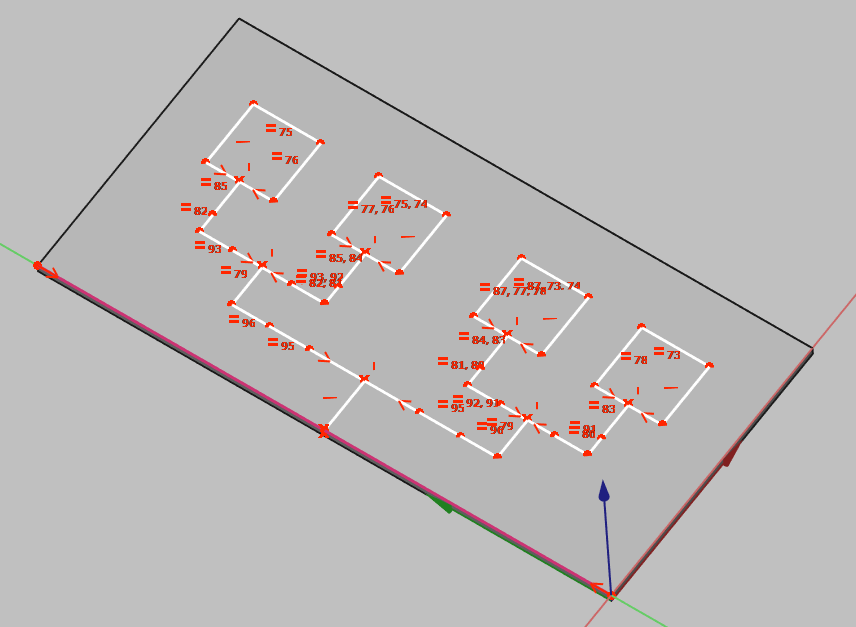

1. In Sketch workbench create a sketch on top of the substrate volume.
   • Create the feed lines as 1D edges.
   • Create the patch surfaces as fully closed wires.

2. Close the sketch, switch to Part design workbench and select the sketch object.

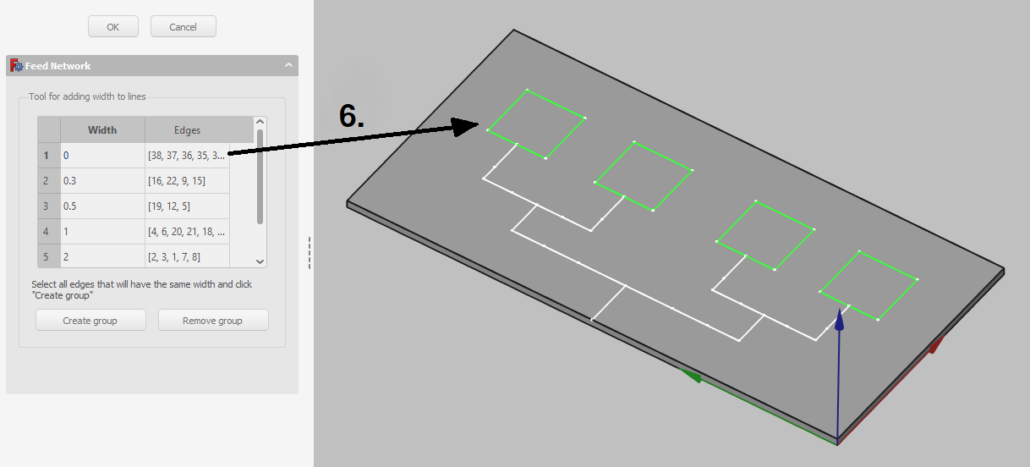

3. Select the Feed Network tool

4. Select all edges with the same trace width and click Add to create separate width groups for each of them.
   • Create one group with a width of 0 for the all of the *enclosed patch edges.

5. Click OK to generate the feed network.

Send geometry to CENOS​

Once you have finished the geometry, you need to send the mesh to CENOS. To do that:

1. Switch to Part design view in FreeCAD.
2. Select all final objects in the tree view.

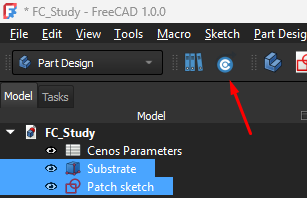

3. Click Geometry to CENOS.

As geometry is being sent to CENOS, FreeCAD study will be automatically saved in the simulation folder, so you can close it.

Roles​

Once the geometry is finished and sent to CENOS, you need to define your geometry before defining the physics on it.

Essentially you need to clarify which part of your geometry is the dielectric, which is the port etc., in other words, define roles for parts of your geometry.

Type of antenna​

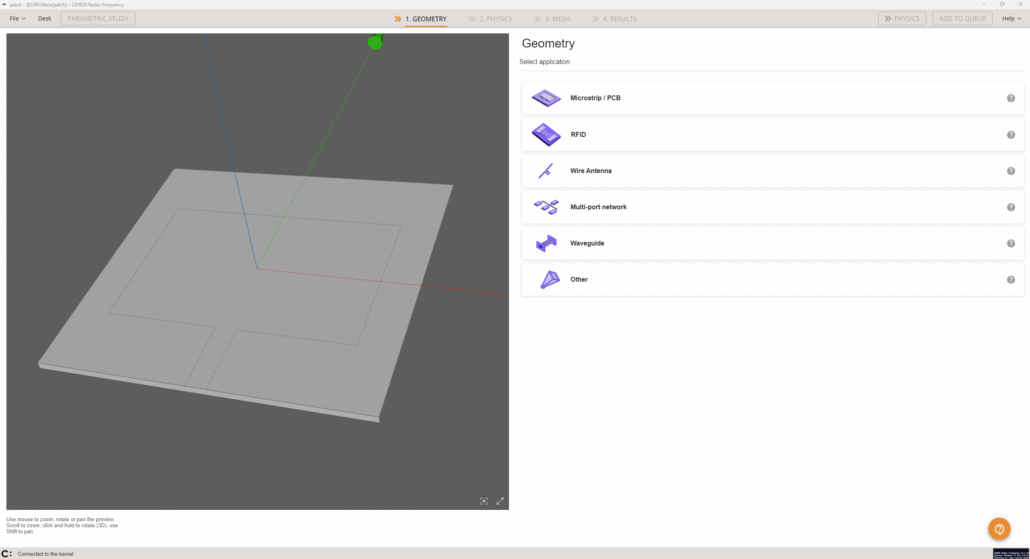

Before you define roles, you need to select what kind of antenna you have – Microstrip, RFID, Wire, Reflector, Multi-port network, Waveguide or Other.

For this example we choose Microstrip/PCB antenna type.

Surface/volume roles​

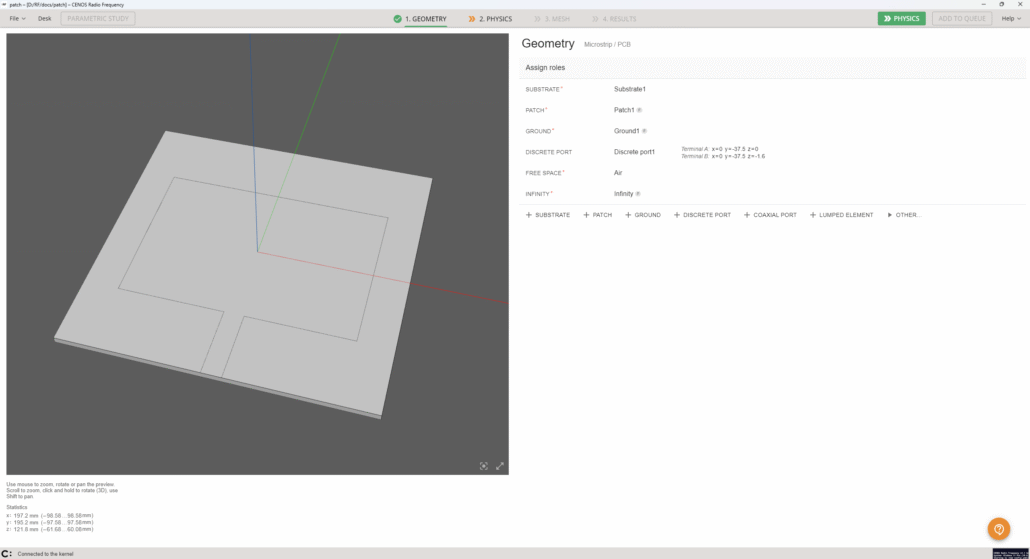

Now you need to define surface and volume roles for your substrate, patch, ground and port.

Go to physics​

When roles are assigned, PHYSICS button will become active – click it to move to the Physics definition!

Physics​

In physics you need to define the physical parameters of your simulation, which include frequencies, material definitions and boundary conditions.

Simulation control​

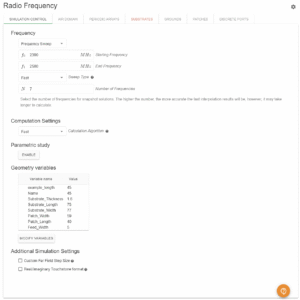

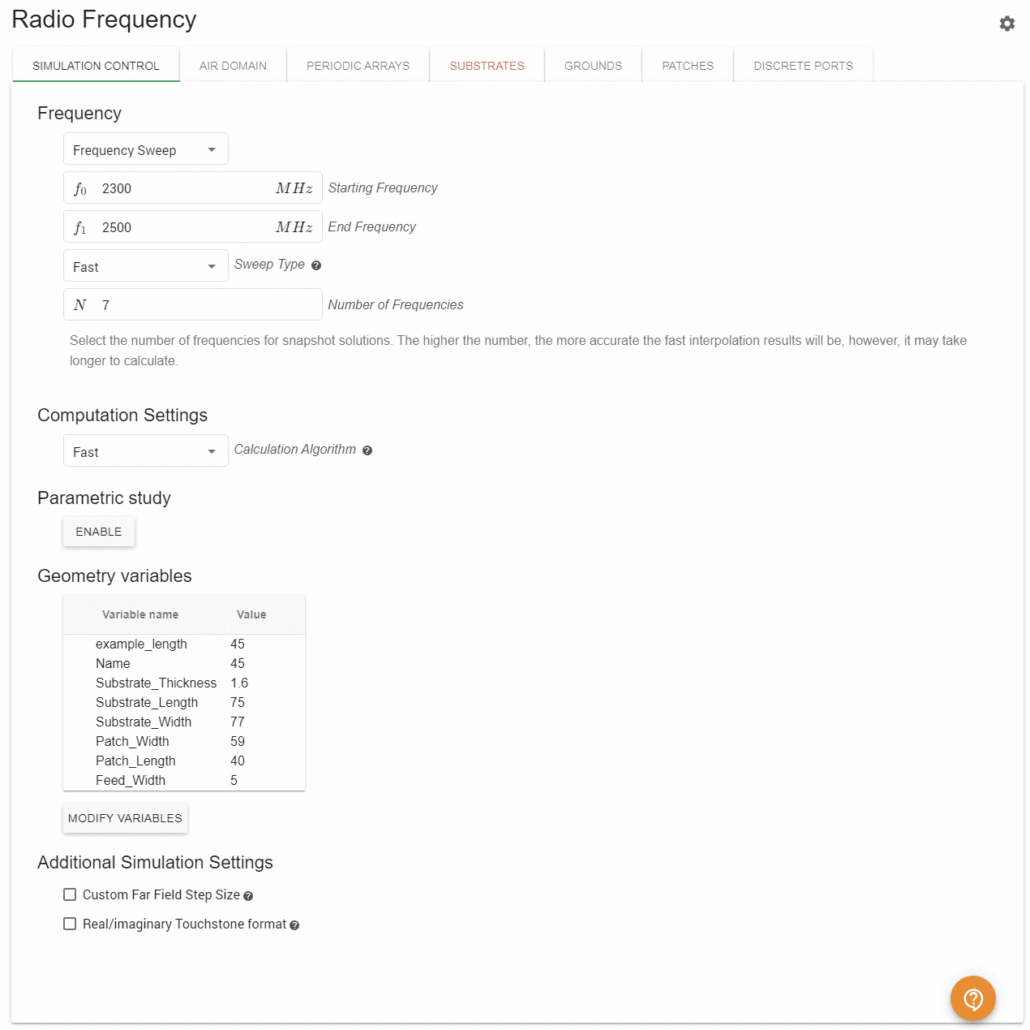

In SIMULATION CONTROL you define either a single frequency or a frequency sweep. You can use two sweep types – fast and discrete.

Volumes​

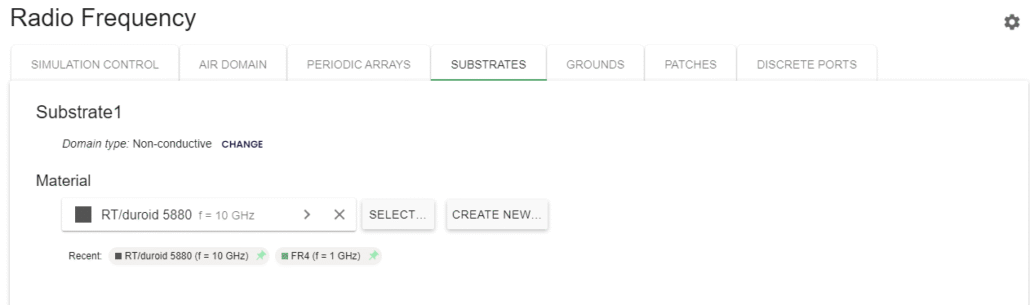

For substrate you only need to specify the material.

Boundaries​

Boundaries or boundary conditions have also been predefined:

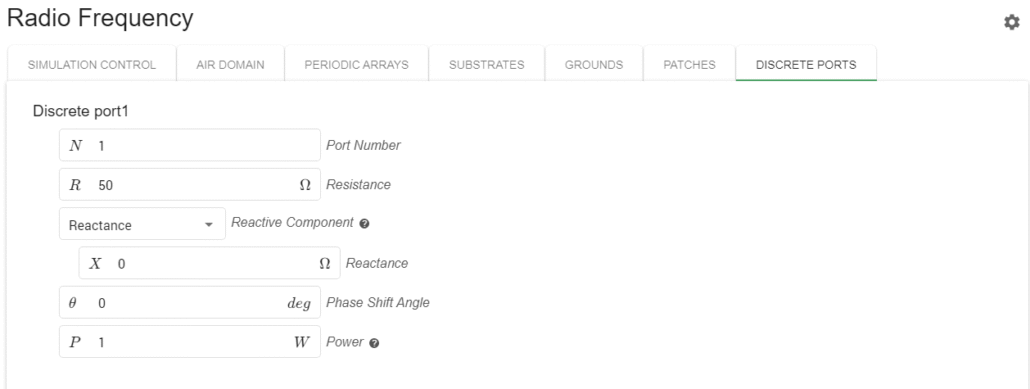

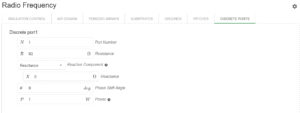

• Uniform Port → Default 50 Ohm Impedance.
• Patch and Ground → Perfect Electric Conductor.
• Air Domain → Automatic air domain padding.
• Periodic Arrays → disabled.

Once all physical parameters are filled, RUN button will become active and you will be able to run the simulation!

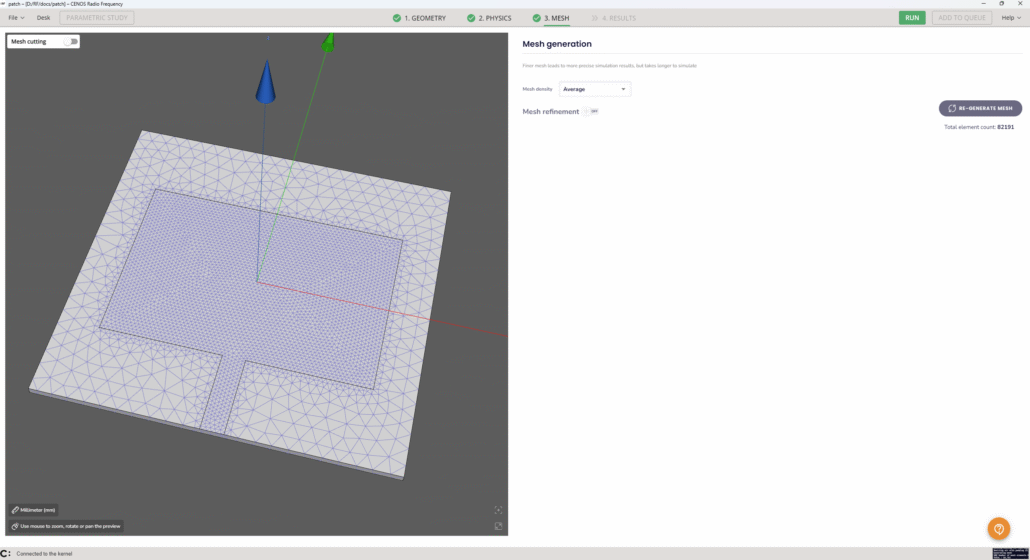

Manual meshing​

If during the calculation you get a message about meshing problems, you will need to manually mesh your antenna. You can also mesh it manually already in the mesh generation section in case you want more control over your simulation.

Results​

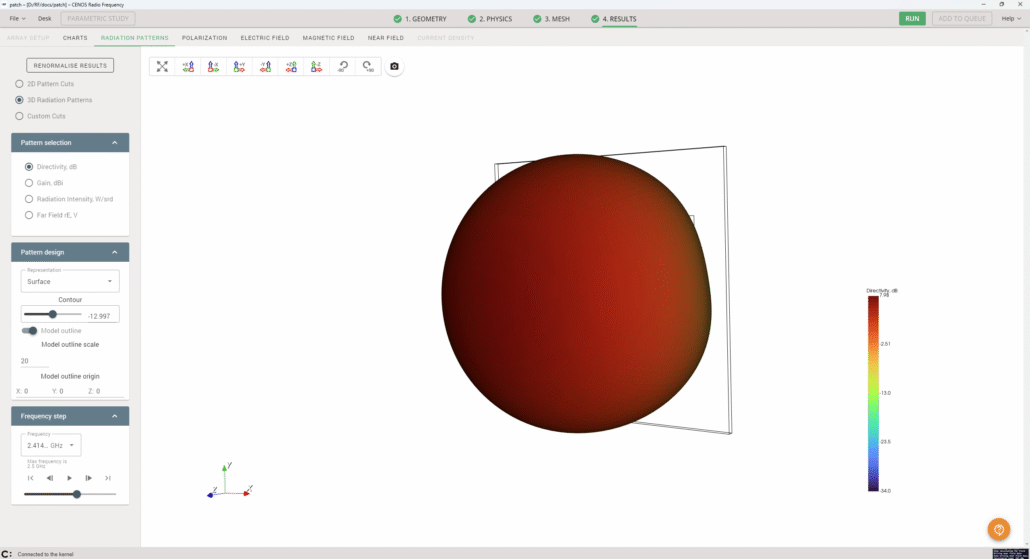

When calculation is done, results will automatically open in Results tab. Congratulations, you have successfully finished a patch antenna simulation!
