Folded dipole antenna simulation setup

In radio and telecommunications a dipole antenna is the simplest and most widely used class of antenna. There are multiple types of dipole antennas – the simplest ones you can simulate using CENOS Radio Frequency Templates, but for more complex ones (such as loop or folded dipole) CAD Editor can be used!

In this guide we will take a look at how to build a complete folded dipole antenna simulation from scratch in CENOS Radio Frequency app, using its built-in geometry editor, FreeCAD.

Case setup​

Before we can actually start building our simulation, we need to first prepare our case – choose the way we will build our geometry, and save the case.

Choose geometry approach​

You have three options from which to choose – Templates, Import CAD (if you have your own CAD file ready) and CAD Editor.

For this example we will choose CAD Editor and build our folded dipole geometry ourselves.

Save the case​

At this point you need to save the case, otherwise if you try to open FreeCAD, CENOS will not let you move forward.

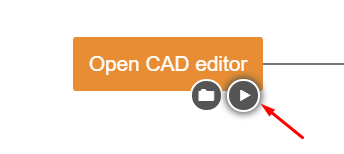

Once the case is saved, click the Play icon to open FreeCAD – CENOS geometry editor.

Geometry creation​

In FreeCAD we have all the possibilities to build our antenna geometry, and we are going to do just that.

In this Geometry creation section we will cover all main points you need to complete to build your own patch antenna geometry manually.

Dipole wire sketch​

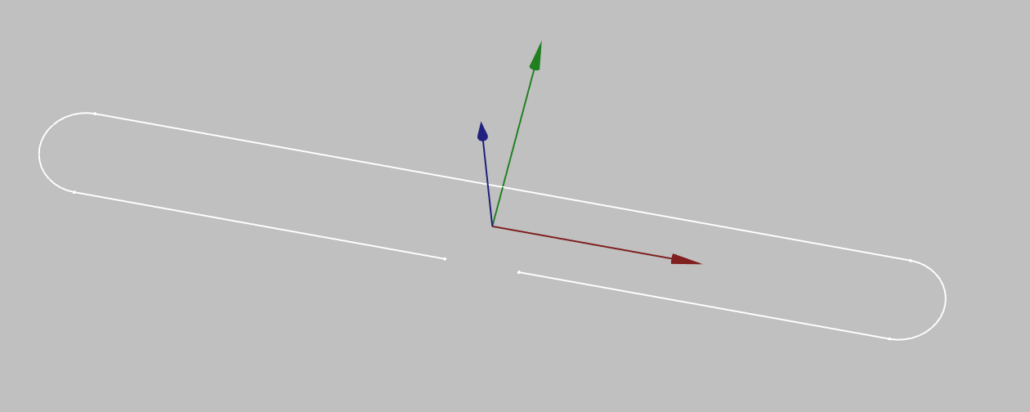

First thing we need to do is to draw the sketch of our wire. In Sketch workbench create a sketch and draw the wire outline.

Wire thickness​

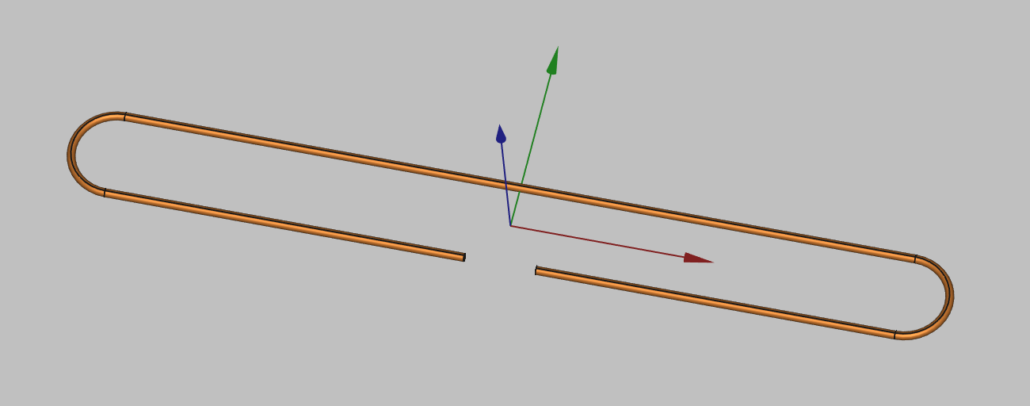

Once the sketch is created, add wire thickness to the sketch to build the actual wire geometry.

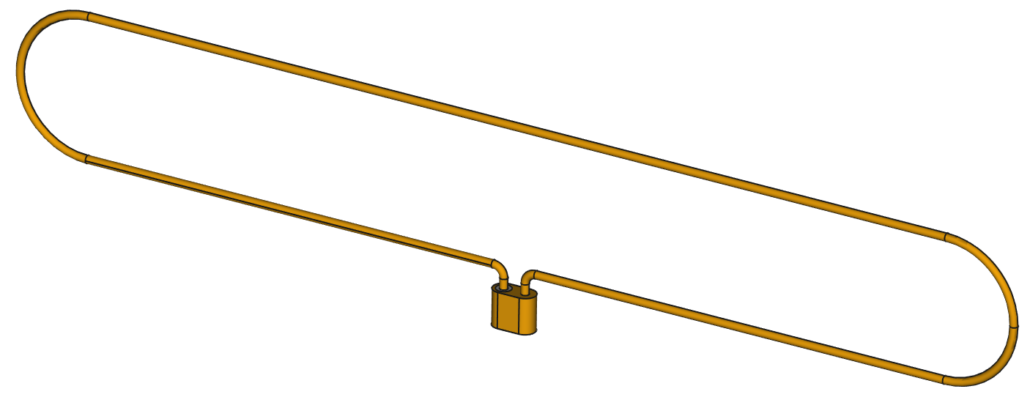

With wire creation you have finished your geometry creation!

Send geometry to CENOS​

Once you have finished the geometry, you need to send the mesh to CENOS. To do that:

1. Switch to Part design workbench.
2. Select all final objects in the tree view.
3. Click Geometry to CENOS.

As geometry is being sent to CENOS, FreeCAD study will be automatically saved in the simulation folder, so you can close it.

Roles​

Once the geometry is finished and sent to CENOS, you need to define your geometry before defining the physics on it.

Essentially you need to clarify which part of your geometry is the antenna, which is the port etc., in other words, define roles for parts of your geometry.

Type of antenna​

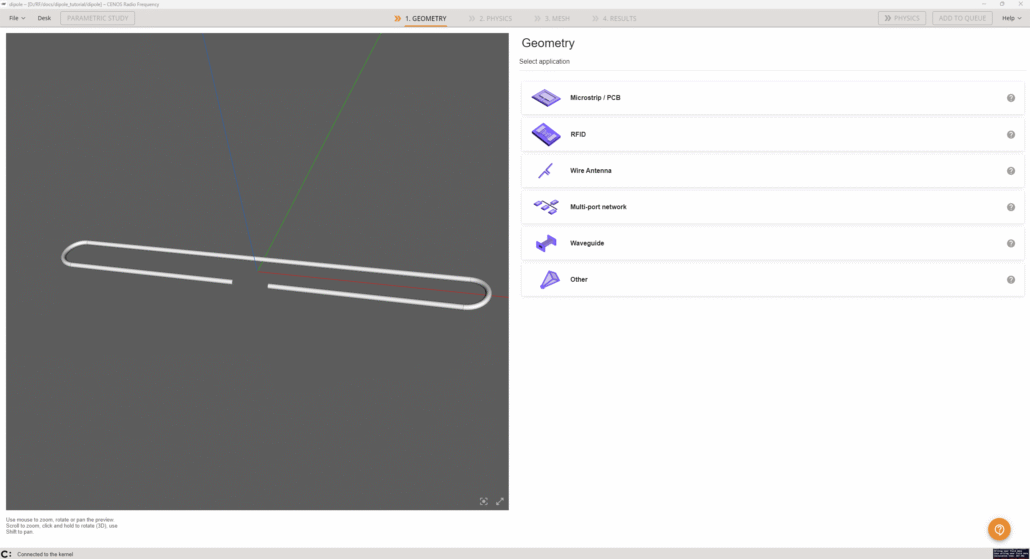

Before you define roles, you need to select what kind of antenna you have – Microstrip, RFID, Wire, Multi-port network. Waveguide or Custom.

For this example we choose Wire antenna type.

Roles​

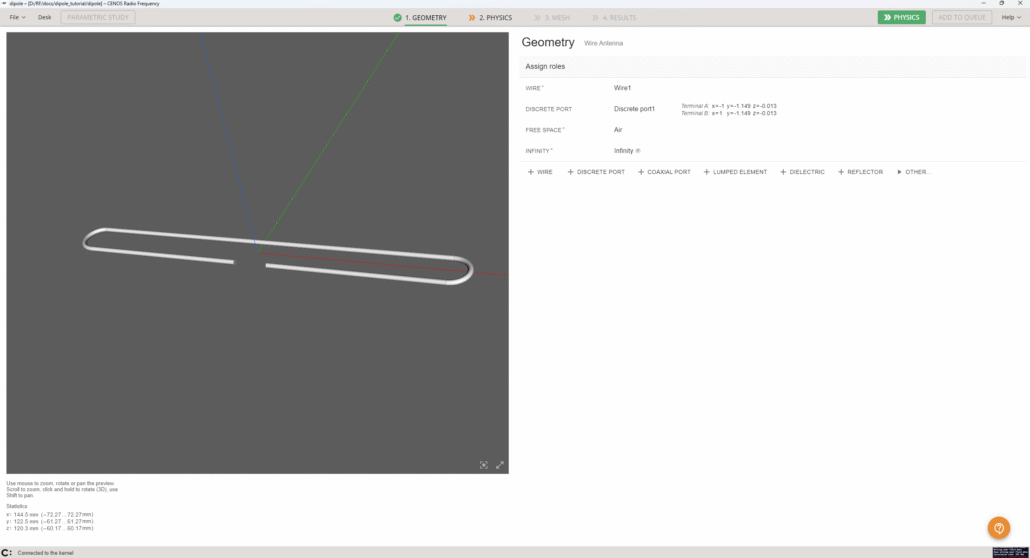

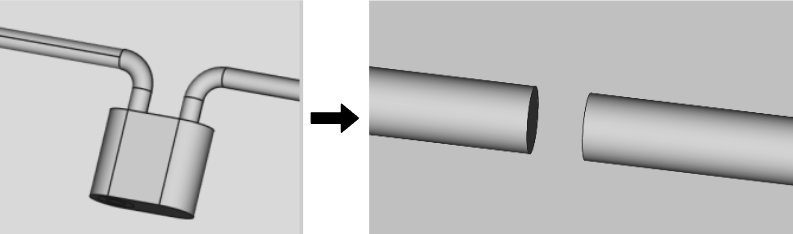

Now you need to define surface and volume roles for your wire and port.

Go to physics​

When roles are assigned, PHYSICS button will become active – click it to move to the Physics definition!

Physics​

In physics you need to define the physical parameters of your simulation, which include frequencies, material definitions and boundary conditions.

Simulation control​

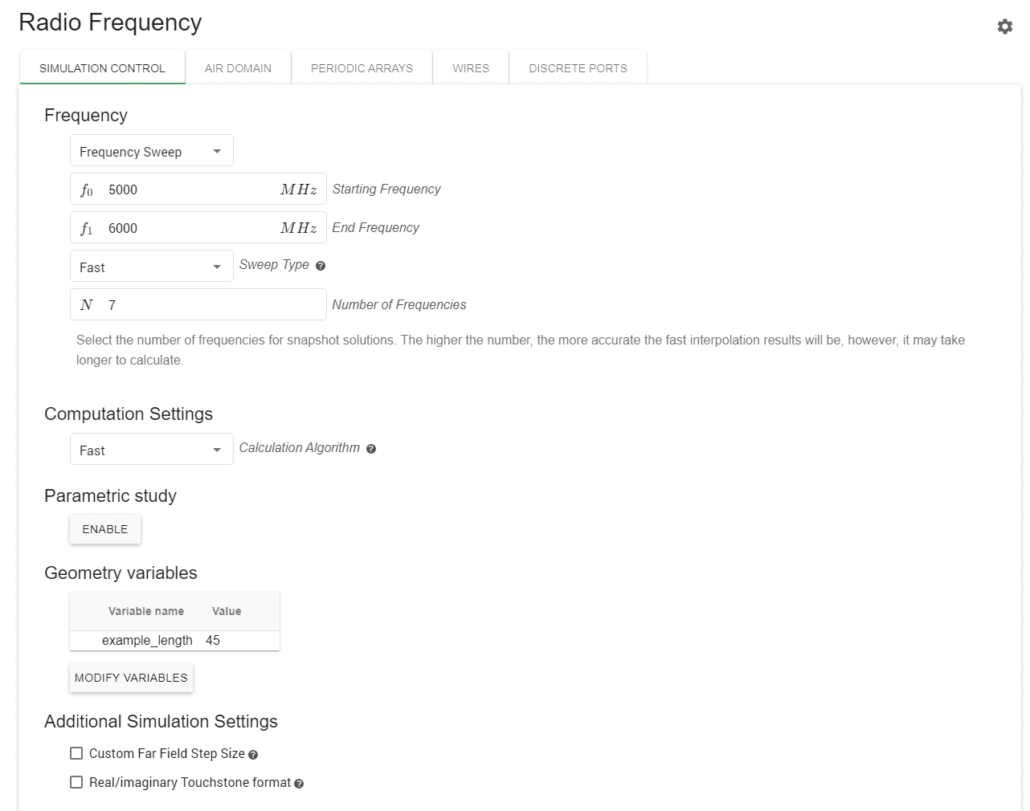

In SIMULATION CONTROL you define either a single frequency or a frequency sweep. You can choose a fast or discrete frequency sweep.

Wire​

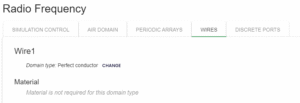

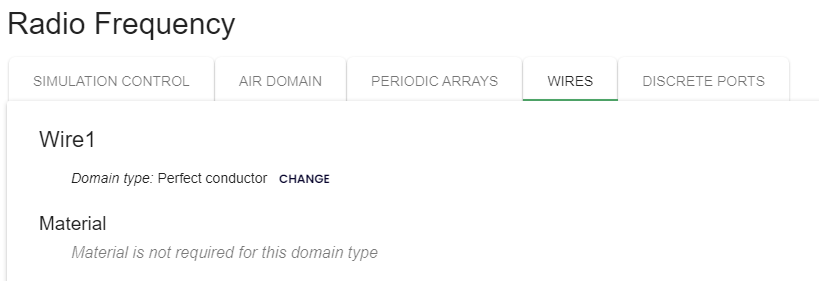

Wire is already predefined for you, so you don’t need to worry about this part at all! Although, if you wish, you can change the antenna material.

Boundaries​

Boundaries or boundary conditions have also been predefined:

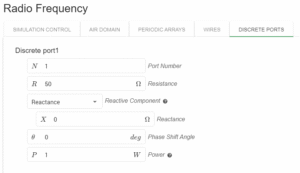

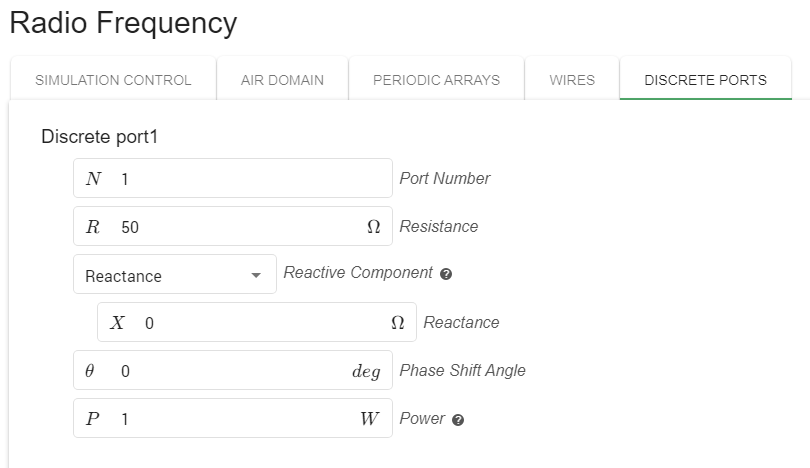

• Discrete Port → Default 50 Ohm Impedance.
• Wire → Perfect Electric Conductor.
• Air domain → Automatic air domain padding.
• Periodic arrays → disabled.

Once all physical parameters are filled, RUN button will become active and you will be able to run the simulation!

Manual meshing​

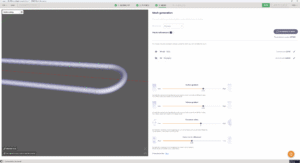

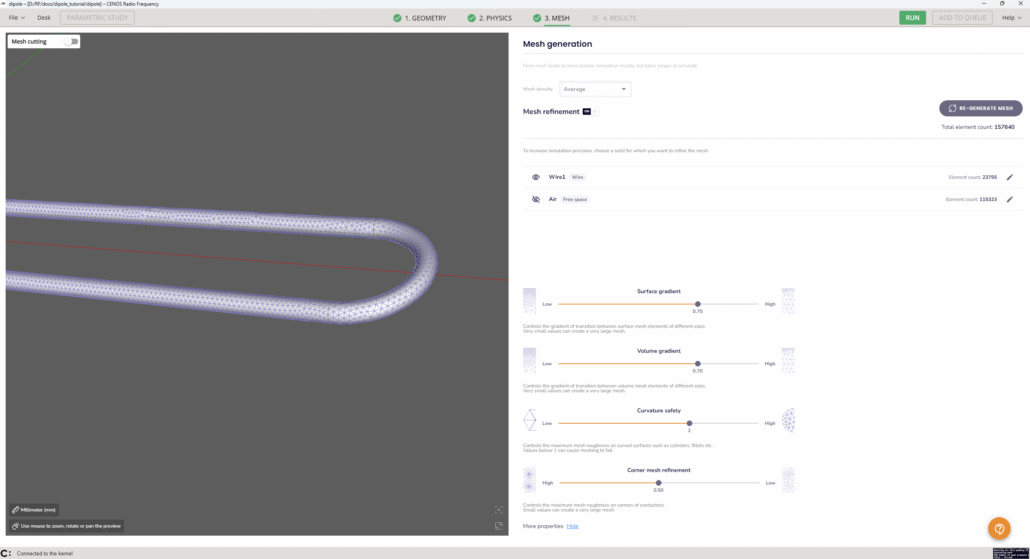

If during the calculation you get a message about meshing problems, you will need to manually mesh your antenna. You can also mesh it manually already in the mesh generation section in case you want more control over your simulation.

Results​

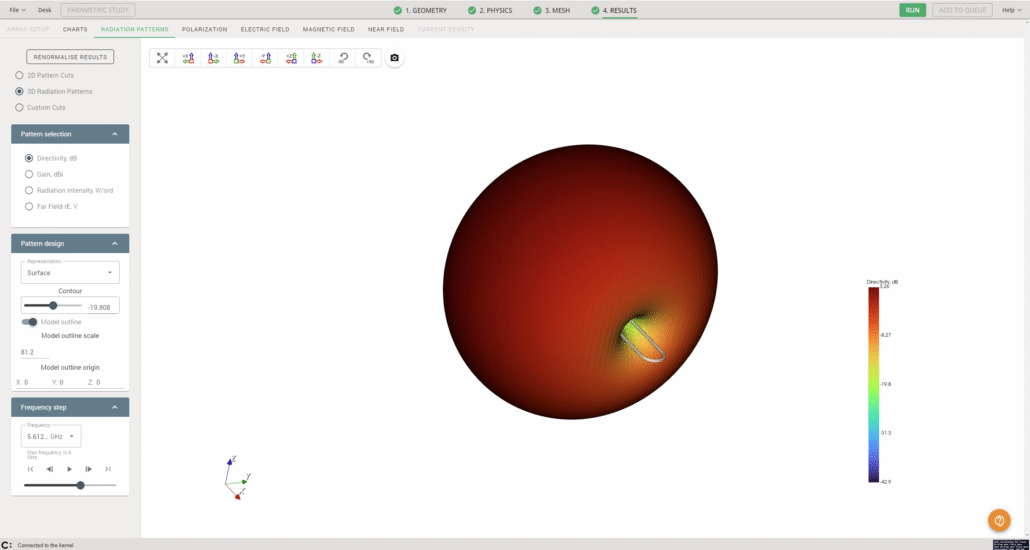

When calculation is done, results will automatically open in Results tab. Congratulations, you have successfully finished a wire antenna simulation!
